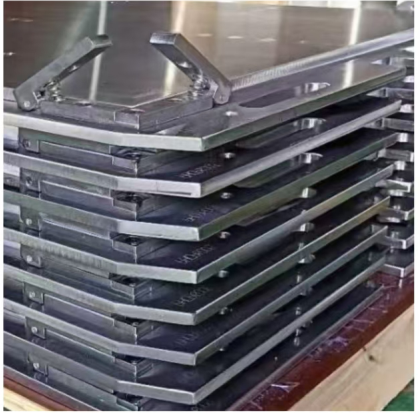

0.012mm Bushing Pin And Spring Clamp For Carrying Tray Carrier Plate

0.012mm Diameter Bushing Pin And Spring Clamp For Carrying Tray/Carrier Plate

1.Introduction of 0.012mm Diameter Bushing Pin And Spring Clamp For Carrying Tray/Carrier Plate

EastStar is the right supplier for the whole set of bushings (sleeve or liner bushing), pins (dowel, peg or plug) and spring clamps (clips or spring clips) used on carrying trays or carrier plates used in PCB or CCL press or laminator.

2. Product features of 0.012mm Diameter Bushing Pin And Spring Clamp For Carrying Tray/Carrier Plate

1).We provide a complete set of supporting accessories for carrying plates, which can be well matched with laminated steel plates to complete the lamination task of PCB/CCL.

2).We provide high-precision bushings and other accessories that can be replaced at any time. The liner bushing size can be used for standard slot holes and is also applicable to other designs.

3).Our position pins have a central positioning hole, which can better cooperate with the removal of pins by the pin removal machine.

3.Technical Parameter of 0.012mm Diameter Bushing Pin And Spring Clamp For Carrying Tray/Carrier Plate

Bush’s technical parameters:

Hardness HRC: 58-60

Standard size mm: Ø6.368*4.77

Diameter tolerance: +0.012/-0mm

Width tolerance: +0.012/-0mm

Standard length:9.5mm

Pin’s technical parameters:

Hardness HRC: 56-58

Standard size mm: Ø6.35*4.76

Diameter tolerance: +0 /-0.005mm

Width tolerance: +0 /-0.005mm

Standard length: 19/25/32/38/44/51/57/63mm

0.012mm Bushing Pin

HRC 60 Bushing Pin

HRC 58 Spring Clamp
